3 Car Garage Plans

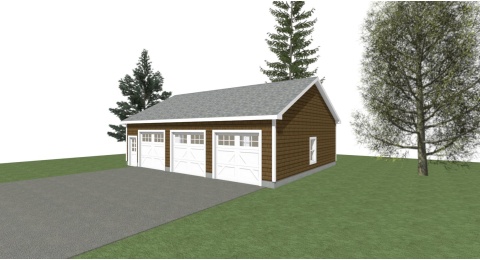

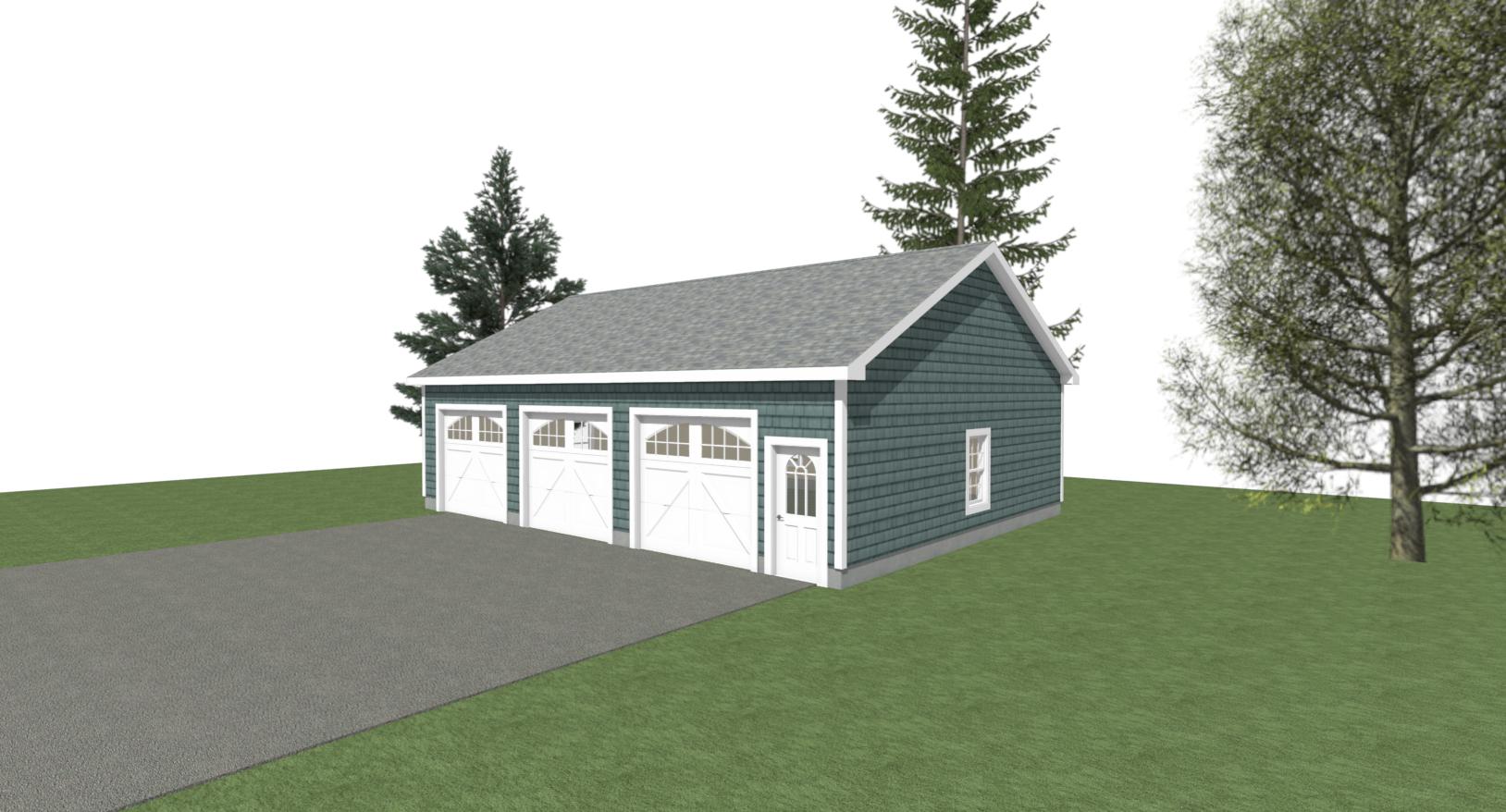

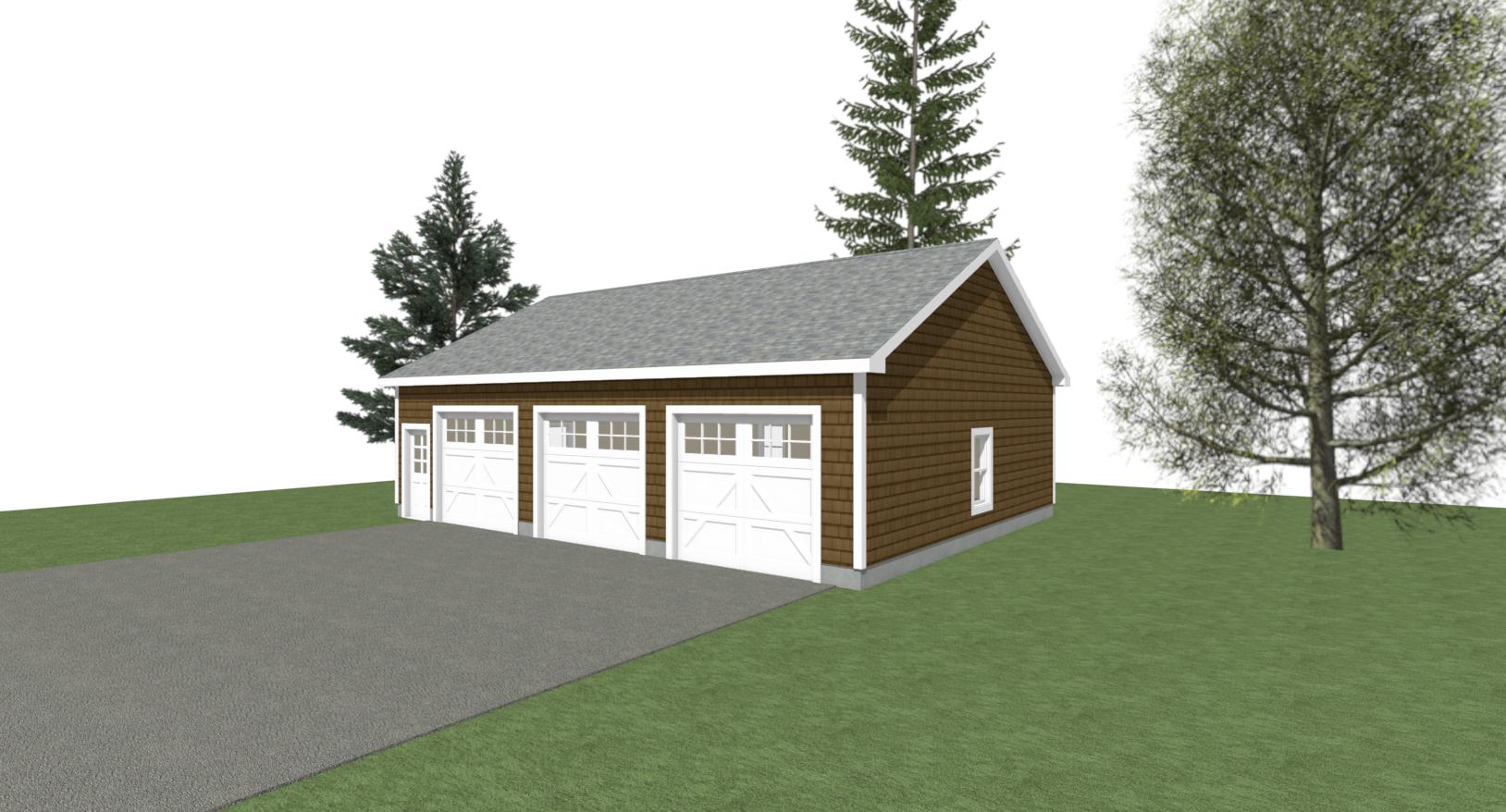

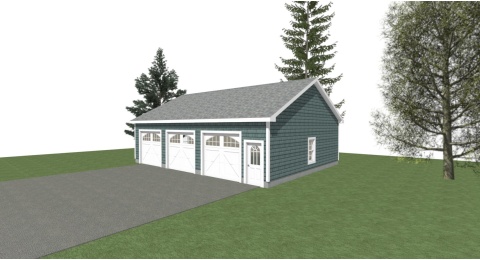

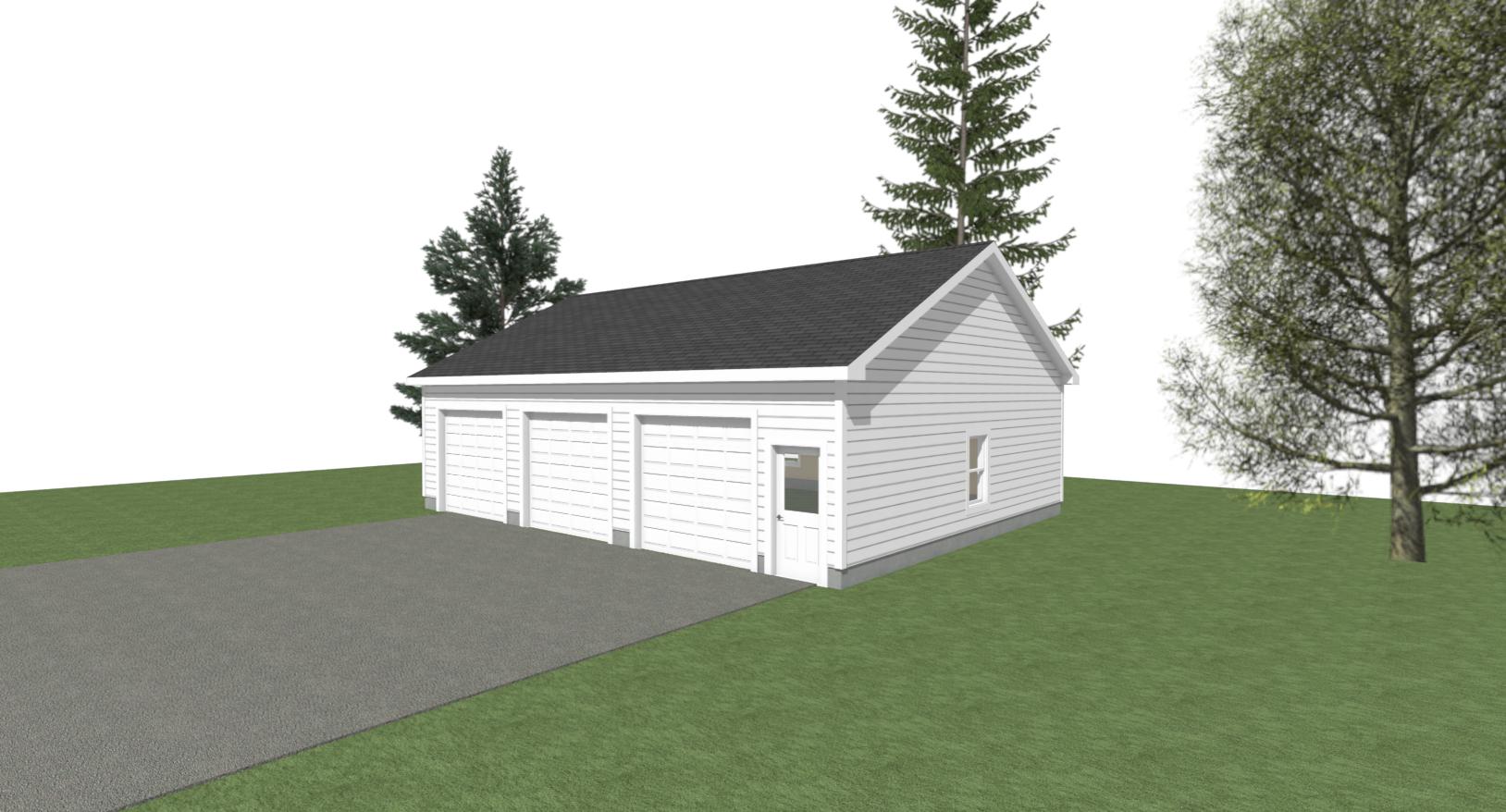

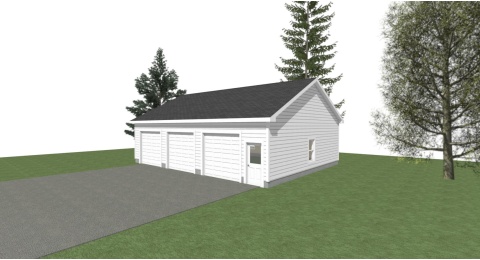

The Hornbeam is a standard 3 bay garage design. A low pitch 6/12 roof allows for easy walk ability with limited balance. The 8/12 choice would be harder to traverse, but would more easily exhaust weather conditions. Intended for parking only with minimal storage capacity available in the remaining space. An Optional pull down ladder is noted for light overhead storage. The Eave Face is presented above the garage doors in this design. The 3 Bay Garage Plans include a material list and a material calculations guide to assist with Estimation.

AS DRAWN :  - - NOTE: The Site is under continued growth and not all Wall Heights are Available for every size.

If you do not find exactly what you are looking for PLEASE inquire, as GET MY GARAGE can provide a custom request typically within 72 hours.   For CUSTOM DESIGN Click Here

• DESIGNATION = 3 Bay Garage Plans
• CODE = Consult Local Code Enforcement
• CODE = IBC/ IRC 2015 Minimum - As Designed
• FOUNDATION = Frost Wall with 12" Stem
• FOUNDATION = Manual Designation Form Available
• WALL HEIGHT = 8'-0", 10'-0", 12'-0", and 14'-0"
• WALL FRAME = 2x6 KD - Open Stud
• SHEATHING = 1/2" Min - Wall
• ROOF = Truss System - Open Ceiling
• ROOF PITCH = 6/12 or 8/12
• SHEATHING - 5/8" Min - Roof
• SIDING = Vinyl Siding
• ROOFING = Architectural Shingles
• WINDOWS = Double Hung
• DOORS = Insulated Entry
• GARAGE DOORS = Insulated
• LIGHT STORAGE ABOVE = Optional
• ACCESS = Pull Down Ladder
• OPTIONS = Consult your Local Suppliers
