3 Car Garage Plans

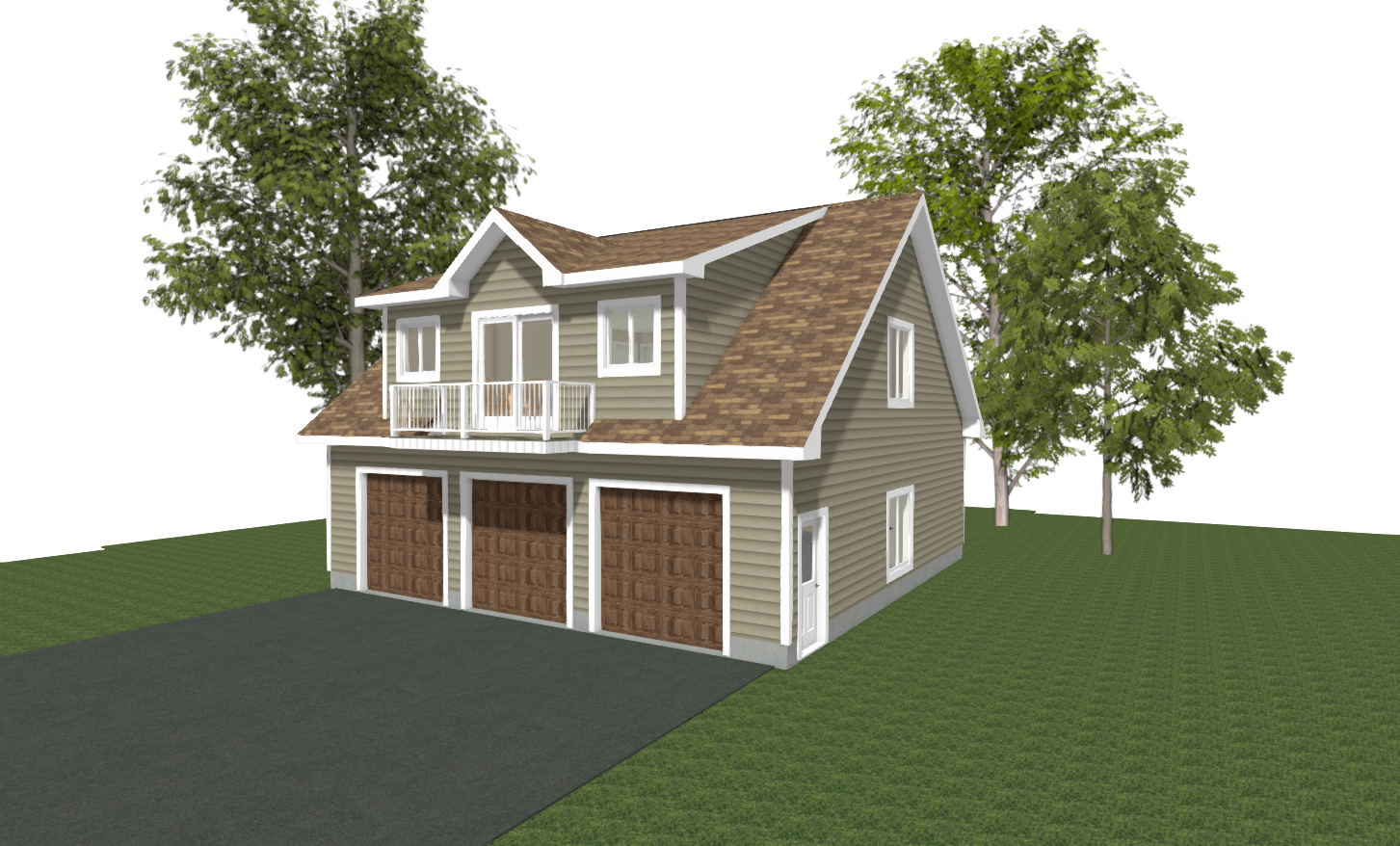

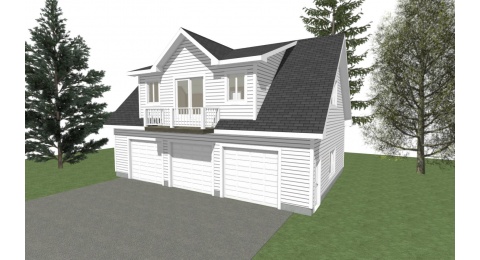

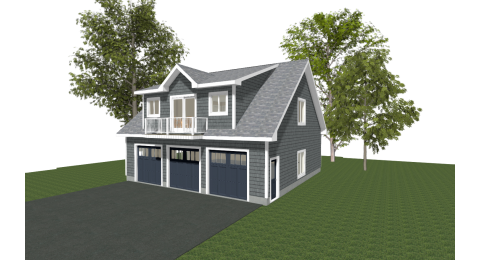

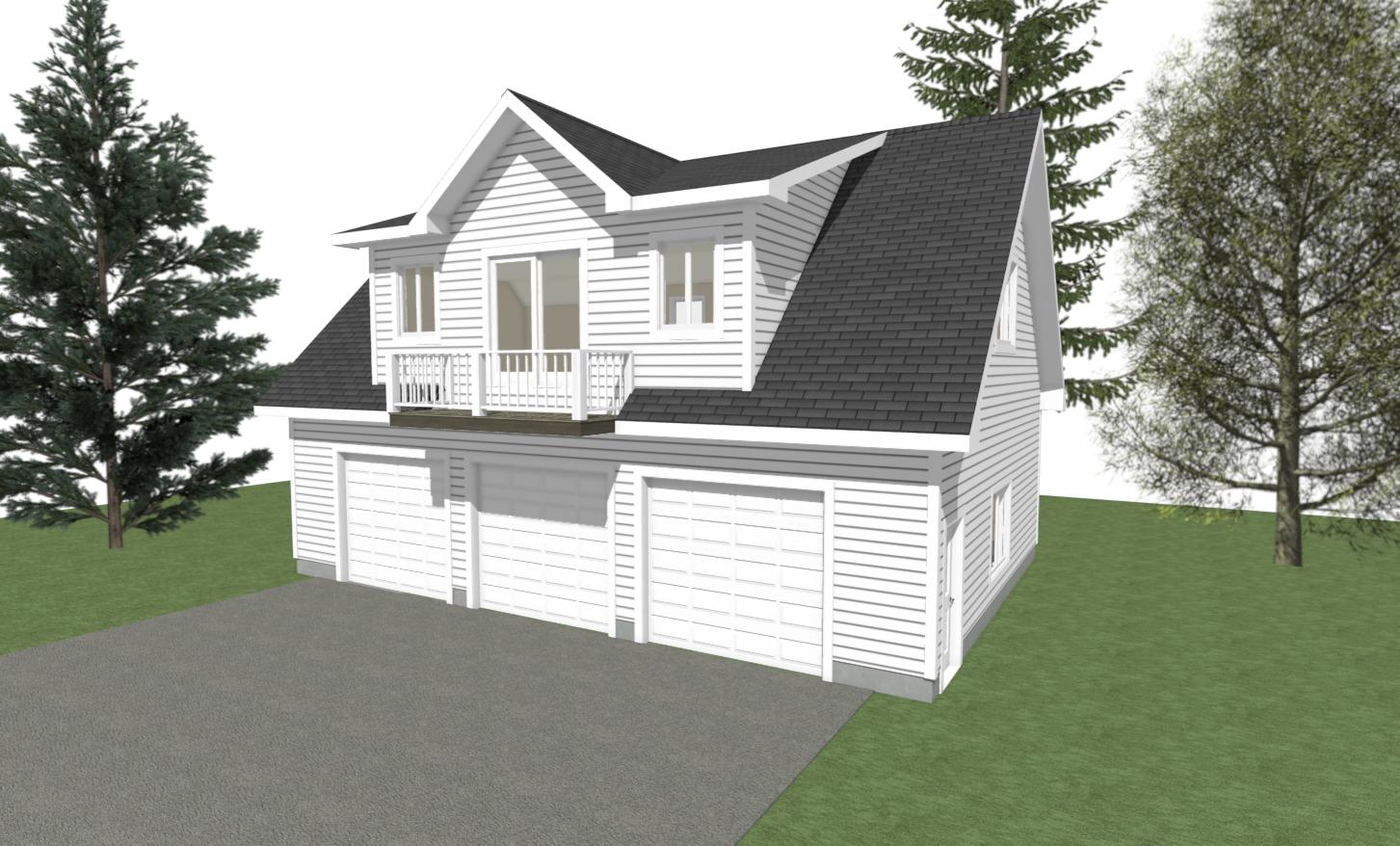

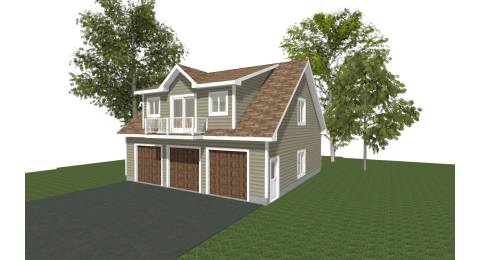

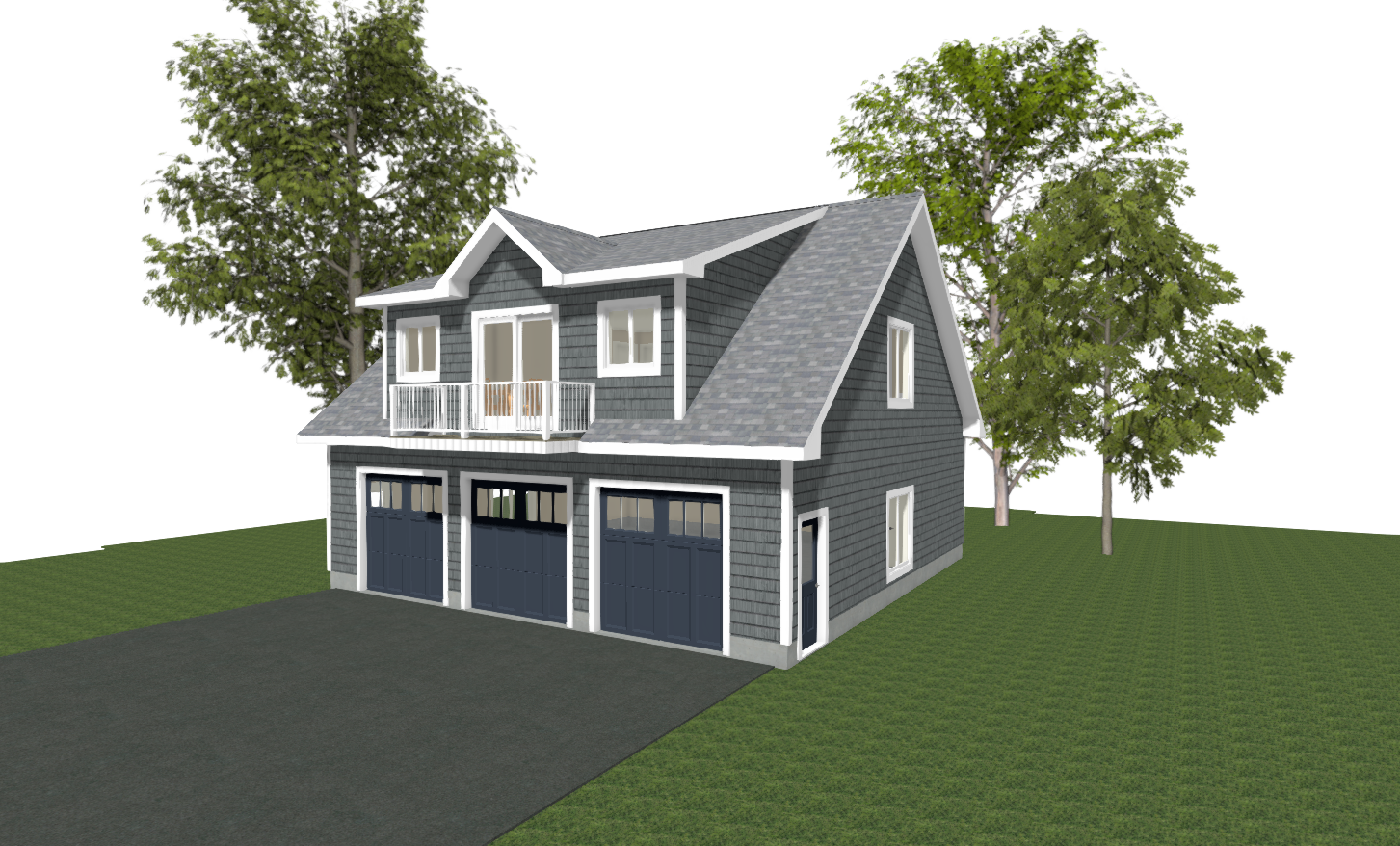

The Black Ash is a Decorative 3 Bay Garage Design with a Studio above. A Steep 10/12 or 12/12 Roof sheds the weather well. Intended for parking only with some utility storage capacity available on the lower level remaining space. 32'-0" and larger depth units will have utility space and a utility access door ( optional ). The Eave Face is presented above the garage doors in this design along with a Multi Slope Style Dormer. The upper level includes an open Studio that could become an apartment, game room, art studio or storage. The Options are Endless. The 3 Bay Garage Plans include a material calculations guide to assist with Estimation.
AS DRAWN : - - NOTE: The Site is under continued growth and not all Wall Heights are Available for every size.
If you do not find exactly what you are looking for PLEASE inquire, as GET MY GARAGE can provide a custom request typically within 72 hours. For CUSTOM DESIGN Click Here
- DESIGNATION = 3 Bay Garage Plans
- CODE = Consult Local Code Enforcement
- CODE = IBC/ IRC 2015 Minimum
- FOUNDATION = Frost Wall with 12" Stem
- FOUNDATION = Manual Designation Form Available
- WALL HEIGHT = 8'-0", 10'-0", 12'-0" and 14'-0"
- WALL FRAME = 2x6 KD - Open Stud
- SHEATHING = 1/2" Min - Wall
- ROOF = Truss System - Open Ceiling
- ROOF PITCH = Varies by Width
- SHEATHING = 5/8" Min - Roof
- SHEATHING = 3/4" Min - Floor
- SIDING = Vinyl Siding
- ROOFING = Architectural Shingles
- WINDOWS = Double Hung
- DOORS = Insulated Entry
- GARAGE DOORS = Insulated
- STORAGE/ STUDIO ABOVE = Yes
- ACCESS = Stairs
- DORMER = Custom Shed - Front ; Shed - Rear
- OPTIONS = Consult your Local Supplier
